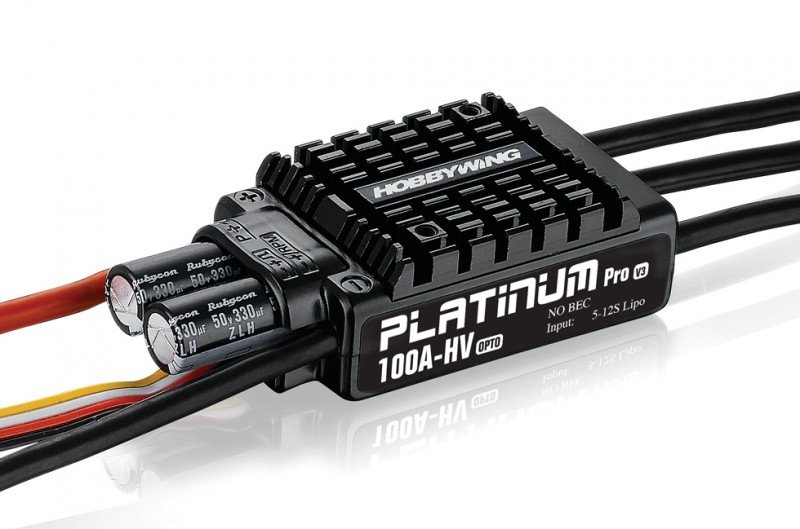

HOBBYWING Platinum HV 100A OPTO V3 - 30203600 好盈  [HW-30203600]

This Platinum HV 100A OPTO V3 ESC can output a continuous current
of 100A and peak current of up to 140A.

New structure design combined with high-performance micro-processor guarantees
users efficient heat dissipation, good compatibility (with various motors),
high driving efficiency, and etc.

This HV 100A OPTO V3 ESC is intended for the operation of 6-12S LiPo battery packs.

This ESC featuring “Fixed-wing/Helicopter (Linear Throttle)/Helicopter
(Elf Governor)/Helicopter (Store Governor)” four flight modes and “Auto
Restart (Time)” function guarantees users excellent speed-governing
performance in Heli Governor mode and allows users to cutoff output and restart
motor for avoiding possible crash caused
by improper operation.

Multiple protection features include abnormal input voltage, ESC thermal,
throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service
life of the ESC.

A separate program port for connecting programmer on this ESC allows user to
● program ESC;
● upgrade ESC firmware (multifunction LCD program box is required);
● monitor/record flight data in real time (with a data transmission module);
● power the extra cooling fan (included in product box).

• Brushed/Brushless : BL
• High Voltage/Regular : HV

• Cont./Peak Current : 100A/140A
• Input : 5-12S LiPo
• BEC Output : No

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

• Transmitter : Supported
• LED Program Card : Not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 77.0x35.0x21.0mm
• Weight : 104g
