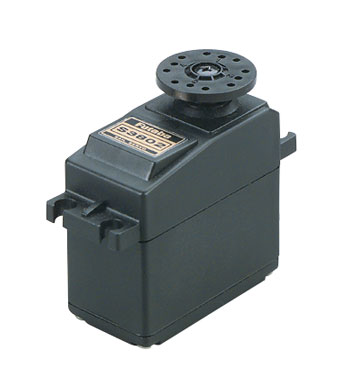

Futaba S3802 Sail Servo 富他巴  [S3802]

This is a High Torque, Arm-Type Sail Servo with a Metal Output Gear for Sailboat Applications.

This S3802 is the replacement for the S125 servo. It can produce high-current draw from your batteries if using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

FEATURES:
Metal gears with a special interference-eliminating lubricant to handle high torque applications.
3-pole motor
Two ball bearings
Plastic sail arm included (FSH25H), plus 22mm Round Horn
Rubber gaskets make it water and dust resistant.
One year warranty
Has an arc of 60�X, it is capable of 140�X with a computer radio that has adjustable ATV. updated 4-28-05, dew

INCLUDES:
One S3802 High Torque Sail Servo w/ J Connector
Four Mounting Screws
Four Rectangular Grommets
Four Brass eyelets

SPECS:
Length: 1.7" (44mm)
Width: 0.9" (23mm)
Height: 1.7" (43mm)
Weight: 2.5oz (72g)
Sail Arm Length: 125mm
Torque: 122 oz-in @ 4.8V - 153 oz-in @ 6V
8.8 kg-cm @ 4.8V - 11.0 kg-cm @ 6V
Transit Time: 0.70 sec/60�X @ 4.8V - 0.56 sec/60�X @ 6V
