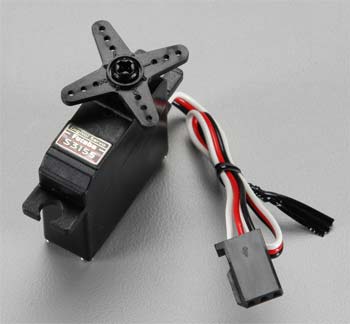

Futaba S3155 Digital HS Slim Servo 富他巴  [S3155]

This is the Futaba S3155 Digital High Speed Wing Servo. Ideal for wing-mounted applications requiring high speed such as gliders.

This servo can produce high-current draw from your batteries if using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

FEATURES:
Dust and water resistant-not waterproof
Compact design is especially suited for easy installation inside the wing of smaller gliders, jets and electric planes
Black plastic case
Metal gears (FUTM3331)
One year warranty


INCLUDES:
One S3155 Digital High Speed Wing Servo
One 1" (25.4mm) 4 arm servo horn (installed on servo)
One 1.5" (39mm) 4 arm servo horn
One 1.75" (45mm) straight servo horn
One 1.4" (35mm) diameter round servo horn
Two eyelets
Two rubber grommets
Two 2x12mm washer head self-threading screws (phillips head)


SPECS:
Speed: 0.16 sec/60�X @ 4.8V, .13 sec/60�X @ 6V
Torque: 28 oz-in @ 4.8V (2.0kg/cm)
Dimensions: 1.2 x 0.4 x 1.1" (30 x 11 x 29mm)
Weight: 0.72oz (20g)
Lead Length: 6" (154mm)


COMMENTS:
S3155 Digital Servo Precautions,
-It is best to avoid long leads and Y-harnesses especially with standard grade wires. If problems are encountered, consider using heavy duty wire such as Futaba's Heavy Duty Series or Hobbico's Pro Series,minimizing lead lengths, and/or removing Y-harnesses.
-Current Drain: This Digital Servo is specially designed for high-torque or high-speed, therefore very high current drain is normal at startup. For ultimate performance when using this servo please review the following points.
1. Radio systems with the Battery Fail Safe function have a higher cut-off voltage setting which will cause shorter operation time.
2. When installing the servo, please check pushrod linkage to make sure there is no binding in order to prevent excessive power consumption and decrease the motor and battery life.

This digital servo cannot be used with the following * AM * transmitters as the servo neutral signal is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
