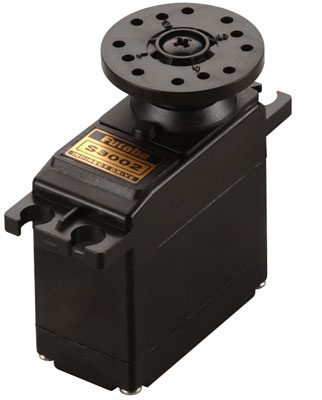

Futaba S3002 Mini Ball Bearing Metal Gear Servo 富他巴  [S3002]

This is a S3002 High Torque Mini Servo for Cars or Sailplanes.
This has metal gears, 3-pole motor, and two ball bearings

This servo can produce high-current draw from your batteries.
If using NiMH or Li-Po batteries, make sure they are capable
of delivering sufficient Amps.

INCLUDES: One S3002 High Torque Mini Servo w/J connecter.

SPECS: Length: 1.2" (30mm)
Width: 0.6" (15mm)
Height: 1.2" (30mm)
Weight: 1.3 oz (37.2g)
Torque: 53 oz/in @ 4.8V - 64 oz/in at 6V
3.8 kg/cm @ 4.8V - 4.6 kg/cm @ 6V
Transit Time: .26 sec/60 deg at 4.8V - .21 sec/60 deg at 6V
upJ2M 9/06/92
ir/jl
9-15-00 UPDATE
The newest shipment of these sevos are now coming with white servo arms, which
some customers may mistake for Hitec. They are NOT Hitec. They look like they
will fit, but the customer runs the chance of stripping the output shaft if
they try to use them on Hitec.
