Futaba S130 Standard Servo 富他巴  [S130]

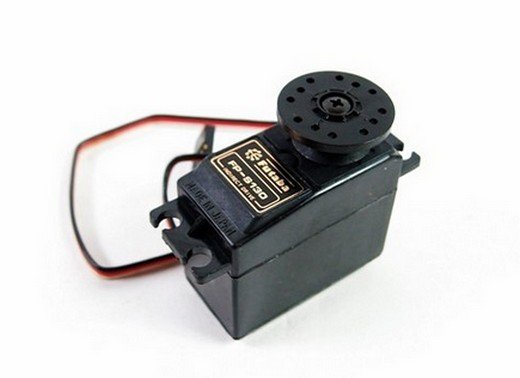

This is the Futaba S130 small, double-ball-bearing ,water-tight and dust-tight Servo

Abiut the Futaba S130 servo

AboutS130 servo The S130 is small, double-ball-bearing water-tight and dust-tight servos designed adn manufactured for use with Futaba radio control sets. The FP-S130 is for Futaba J, M and SG Series. Use them for channel expansion or as replacement parts.

FEATURES:

• High Quality five-pole micromotor water-tight and Dust-tight servos. Output torque: 55.6oz.in (4kg.cm). Nominal operating speed : 0.24sec/60 degree
• New indirect drive sealed potentiometer improces vibrateion and shock resistance, and increases neutral precision tremendously.
• Futaba low-power custom IC provided high starting torque, narrow dead band, and excellent trackability
• Fiberglass reinforced PBT injection molded serco case is mechanically strong and invulnerable to glow fuel.
• Strong polyacetal resin precision serco gear features smooth operation , positive neutral , and virtually no backlash.

SPECS:

• Control system : + pules width control 1520us neutral
• Operation angle : One side 45degree min (including trim)
• Power supply : 4.0-6.0v shared with the receiver
• Current drain : 6.0v 8mA (at idle)
• Output Torque: 55.6oz.in (4kg.cm)
• Operating speed : 0.24sec/60 degree
• Dimensions : 38.5 x 19.5 x 34.5mm
