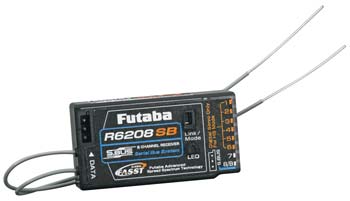

Futaba R6208SB 2.4G 8ch S.Bus Receiver w/ High Voltage & High Speed Mode 富他巴  [R6208SB]

FEATURES:

• Utilizes digital serial data communication technology to transmit control signals between the receiver and servos using S.Bus hubs and cables (available separately)
• Easy programming with the SBC-1 Channel Setting Tool (FUTM4190),
• S-Bus receivers or PCLink software
• SBD-1 decoder cables (not included) allow the use of existing analog and digital servos
• Handles eight channels without S.Bus usage or as many as the available number of channels on transmitter with S.Bus use
• Prevents mismatched servo/channel connections
• Full-range receiver with DAD (Dual Antenna Diversity) that can be used in any flight application

INCLUDES:

Futaba R6208SB 2.4GHz FASST 8-Channel Receiver with Instructions and Short Plug for connection the DATA port when an S.Bus channel is set

REQUIRES: Linking to transmitter and setting servo channels

SPECS:

Power Requirement: 3.7V or 7.4V battery or regulated output from ESC*
*output capacity must meet usage condition
Voltage Range: 3.5 - 8.4V
Dimensions: 0.98 x 1.86 x 0.56" (24.9 x 47.3 x 14.3mm)
Weight: 0.49oz (13.8g)

COMMENTS:

FUTM4191 SBD-1 SBUS Decoder 1600mm
FUTM4192 SBD-1 SBUS Decoder 1100mm
FUTM4193 SBD-1 SBUS Decoder 400mm
