Futaba R156F FM 40MHz/ 72MHz Micro Receiver w/o Short Crystal 富他巴  [R156F]

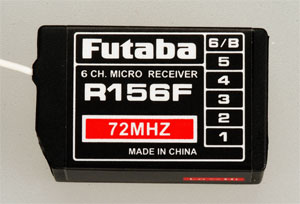

This is an R156F 6-Channel 72MHz FM Receiver "Without Crystal" from Futaba.
It is NOT suggested to go below channel 16
with these receivers as you may experience interference.

FEATURES:
Narrow-band spacing and superior signal filtering combine to provide exceptionally clear, interference-free reception and amazingly smooth, accurate control
Perfect for Park or Slow Flyers
Range of approximately 500 feet (167m)
Uses standard size servo connectors
This covers the complete 72MHz band
One year warranty

INCLUDES:
One R156F 6-Channel 72MHz FM Receiver without Short Crystal

REQUIRES:
One FUTL63** "Short" Crystal (High)
FUTL62** "Short" Crystal (Low)
If utilizing all 6 channels a Y-harness is needed, HCAM2500.

SPECS:
Narrow Band: 20kHz
Power Requirements: 4.8 to 6.0V (shared with servos)
Current Drain: 10mA
Length: 1.3" (33.3mm)
Width: 0.51" (13mm)
Height: 0.84" (21.4mm)
Weight: 0.36oz (10.2g)
