Futaba GY240 Gyro 70Hz w/SMM Technology 富他巴  [GY240]

Futaba GY240 - Futaba GY240 Gyro 70HZ w/SMM Technology

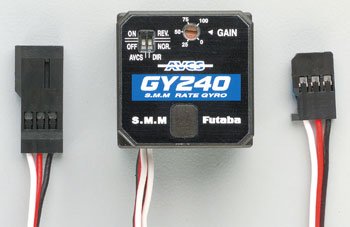

This is the GY240 Gyro with SMM Technology from Futaba.
This is a High Performance, Compact and Light Weight
(AVCS) Angular Vector Control System gyro developed for model helicopters.
Because the sensor and control circuit are integrated, it is simple to install.
One Year Warranty

FEATURES:

AVCS System: Since the rudder trim changes (caused by wind and other
meteorological changes); the front, rear, and other heli attitudes
change and are automatically canceled; tail (rudder)
operation is easy, making it perfect for 3D flight.
SMM Gyro Sensor: Use of this newly developed technology virtually
eliminates rudder trim changes during flight (see COMMENTS).
Integrated, compact and lightweight design made possible by high
density mounting technology.
Conductive Resin Case: This case improves EMC (Electrostatic and
electromagnetic interference) resistance.

INCLUDES:

One GY240 gyro
One mini plastic adjustment screwdriver
Three mounting pads
One instruction sheet

SPECS:

GY240 Gyro-
Length: 1-1/16" (27mm)
Width: 1-1/16" (27mm)
Height: 3/4" (20mm)
Weight: 25g

COMMENTS:

Can be used in helicopters and airplanes (Due to 0-100% Gain Adjust).
The new SMM (Silicone Micro Machine) technology is the integration of mechanical elements, sensors, actuators and electronics all brought together on a common substrate chip. This hobby industry first, results in a gyro sensor with an unprecedented level of functionality, reliability, and sophistication. This will not work with digital servos. These have a different
pulse.
