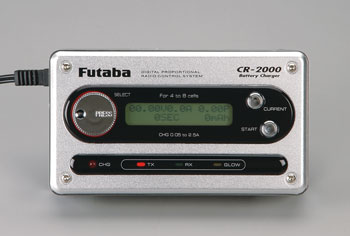

Futaba CR-2000 DC Peak Charger 富他巴  [CR-2000]

FEATURES:
Peak charge detection, auto cut-off and audio alert
LCD screen displays input and output voltage, charge current, peak
voltage, charge time, and amount.


INCLUDES:
One Futaba 12V Battery Charger with cigarette lighter adapter,
alligator clips, 28" (711mm) transmitter charge cord, and two
20" and 80" (508mm and 2032mm) receiver charge adapter cords.


REQUIRES:
11-15V DC power supply having an output capacity of 6A or more.
(HCAP0250)


SPECS:
Battery Range:����������� Tx: 6-8 cells, 500-2000mAh
��������������������������������� Rx: 4-6 cells, 50-2000mAh
Glow Plugs:��������������� 1 cell, 2000-3000mAh
Input Voltage:������������ DC11V-16V
Operation Voltage:���� 10.5V
Charging Current:������ Tx 0.5A-2A
����������������������������������Rx 0.05-2A
Cut Off:��������������������� Delta Peak
Trickle charge rate:���� at .05 to .45A rate is 5 mils
���������������������������������at .5 to 2.5A rate is 70 mils

Length: 6" (152mm)
Width: 3.4" (86mm)
Height: 1.4" (36mm)
Weight: 355g (12.5oz)


COMMENTS:
For use with NiCDs or NiMH batteries only.
TX and RX can be charged simultaneously.
Don't short-circuit or reverse connect battery.


Avoid places where the charger will be exposed to direct sunlight.
Perform charging within the 41-104F�X(5-40C�X) temperature range.
Do not charge radio batteries and glow starter simultaneously.
