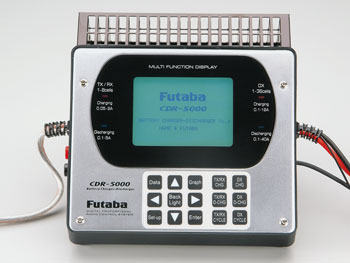

Futaba (#CDR 5000) - Futaba High Performance Battery Charger/Discharger CDR-5000
This is the Futaba High Performance Battery Charger and Discharger.
Linear current charger with advanced peak detection and automatic cutoff circuit.
Only for Ni-Cd and Ni-Mh Battery
**Do not use with Lithium Polymer (LiPo) battery packs**
FEATURES:
Charges, discharges (see COMMENTS), and cycles 1-8 cell NiCd and NiMH transmitter and receiver packs
Charges, discharges and cycles 1-36 cell NiCd and NiMH car packs
All charging info including real-time graph plotting is shown on large backlit LCD screen for touch-free operation after setup
Bar graphs show the average voltage and peak voltage of each cell in the charging mode, also shows average voltage of each cell in the discharging mode
Auto cut-off can be programmed for delta peaking, mAh, and temperature settings
Reverse polarity and overload protection
One year limited warranty
INCLUDES:
One Futaba High Performance Battery Charger and Discharger with Tx and RX charge adapters, charger stand, input cord with alligator clips, thermo sensor cord, output clips for motor battery, terminal harness and illustrated instruction manual
REQUIRES: DC power supply 12-16V
SPECS: Length: 6.7" (170mm)
Width: 6.7" (170mm)
Height: 3.3" (83mm)
Weight: 2.6lbs (1200g)
Measurement: I/O Voltage, Output Current, Peak-Voltage, Average-
Voltage, 3-Division Average Voltage, Internal Resistance, Capacity,
Time, Power Level, Matched Level, Temperature, Humidity
Input: 11-16V DC Minimum 40Ah (power voltage power-off @10V)
Charging Current: DX: 0.1A-12A
TX & RX: 0.05A-2A
Discharging Current: DX: 0.1A-40A
TX & RX: 0.1A-5A
Battery Range: DX: 1-36 cells/50mAh-9999mAh
TX & RX: 1-8 cells/50mAh-2500mAh
Cut Off: Delta Peak and Zero Delta V, Temperature, Capacity, Maximum- Voltage
Display: Graphic 192x128 LCD with Backlight
Safety Device: Overload, Reverse Polarity Protected and 5 Cooling Fans
COMMENTS: IMPORTANT! If transmitter is diode protected, battery pack MUST be removed from transmitter in order to discharge it.
Do not connect to 12V car battery while it is installed in vehicle. The battery could completely discharge making it impossible to start vehicle. Prepare a stand alone 12V battery for use with with this charger if not using DC power supply.
