Futaba BLS551 Brushless Low Profile Car Servo 富他巴  [BLS551]

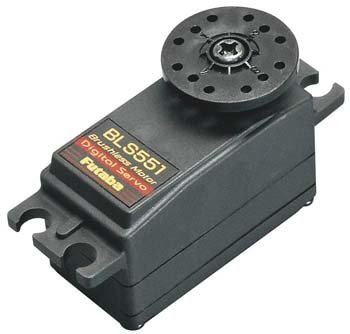

This is the BLS551 Digital Brushless Low Profile Car Servo from Futaba.
This servo produces high-current draw from receiver batteries
use only NiCd receiver batteries.

FEATURES:

• Low profile design suited for 1/10 & 1/8 scale steering applications
• Equipped with brushless motor, metal gears and two ball bearings for smooth operation and long life
• Same power consumption as brushed digital servos

INCLUDES:

• BLS551 Digital Brushless Low Profile Car Servo
• 0.83" (21mm) diameter Round Horn
• 1.7" (44mm) 3-sided Servo Horn
• 3x8mm Horn Screw, FUTM2290
• Two Rubber Mounting Dampers and Four Metal Eyelets
• Instruction Sheet
• NOTE, Mounting screws are not included, order FUTM2250 if needed

REQUIRES:

Installing in model, connecting linkage and connecting to receiver

SPECS:

• Torque: 102 oz-in (7.4 kg-cm) @ 4.8V 128 oz-in (9.2 kg-cm) @ 6V
• Speed: 0.13 sec/60?X @ 4.8V 0.10 sec/60?X @ 6V
• Dimensions: 1.6 x 0.8 x 1.0" (41 x 20 x 25mm)
• Weight: 1.6 oz (44g)

COMMENTS:

For use only with FM, PCM and HRS systems. Not for use with AM systems.
