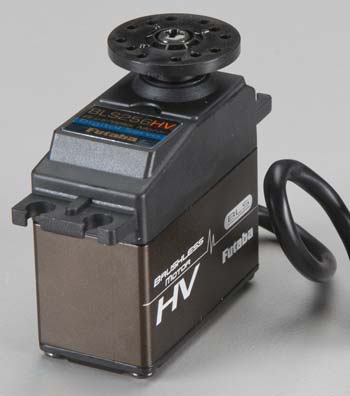

Futaba BLS256HV - High Voltage High Speed Servo 富他巴  [BLS256HV]

• Designed for rudder control in Futaba high end gyros
• Brushless motor
• Handles up to 2S LiPo battery power

INCLUDES:

• Futaba BLS256HV Servo
• 0.83" (21mm) Diameter Round Horn
• 1.8" (45mm) Diameter Round Horn
• 1.6" (38.5mm) Diameter 4-Point Horn
• 1.2" (32mm) Diameter 6-Point horn
• Mounting Hardware

REQUIRES: Installing in heli, connecting linkage and connecting to gyro

Specs and Features

• Speed: 0.055 sec/60 degree at 6.6V, 0.050 sec/60 degree at 7.4V
• Torque: 61.1 oz/in (4.4 kg/cm) at 6.6V, 69.5 oz/in (5.0 kg/cm) at 7.4V
• Size: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
• Weight:2.15oz (61g)
• Power Supply: 6.0 - 7.4V DC

COMMENTS

The BLS256HV is designed only for gyro rudder control. Dead band is set as narrowly as possible. When the fuselage is static, the servo may jitter. This condition is normal.
Very high current drain is normal at startup. Always use a 6V - 7.4V battery.
