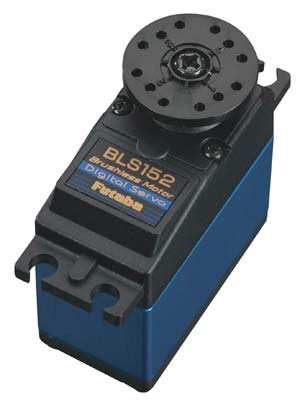

Futaba BLS152 Brushless Super High Torque Air Servo 富他巴  [BLS152]

FEATURES:

• At least five times longer lasting than brushed servos
• Dual ball bearings and Samarium cobalt magnets
• Smoother operation and greater resistance to jolts and vibration
• Same power consumption as brushed digital servos
• Aluminum center case

INCLUDES:

Futaba BLS152 Servo with 0.83" (21mm) round horn, 1.8" (45mm) round horn, 1.5" (39mm) 4-point horn, 1.2" (32mm) 6-point horn, four rubber grommets, four metal eyelets and four 1.5 x 12mm mounting screws, instruction sheet

REQUIRES:

Installing in aircraft, connecting linkage and connecting to receiver

SPECS:

• Speed: 0.14 sec/60?X at 6V
• Torque: 430.6 oz-in (31.0kg-cm at 6V)
• Size: 1.59 x 0.83 x 1.51" (40.5 x 21 x 38.4mm)
• Weight: 2.58oz (73g)
• Horn Set Screw Size: 3x8mm

COMMENTS:

The BLS152 is designed for high torque applications in large scale models. Very high current drain is normal at startup. Always use a 5-cell NiCd battery for best performance.

For full performance of digital servos use them only with PCM and FASST systems. Do not use digital servos with AM systems.
