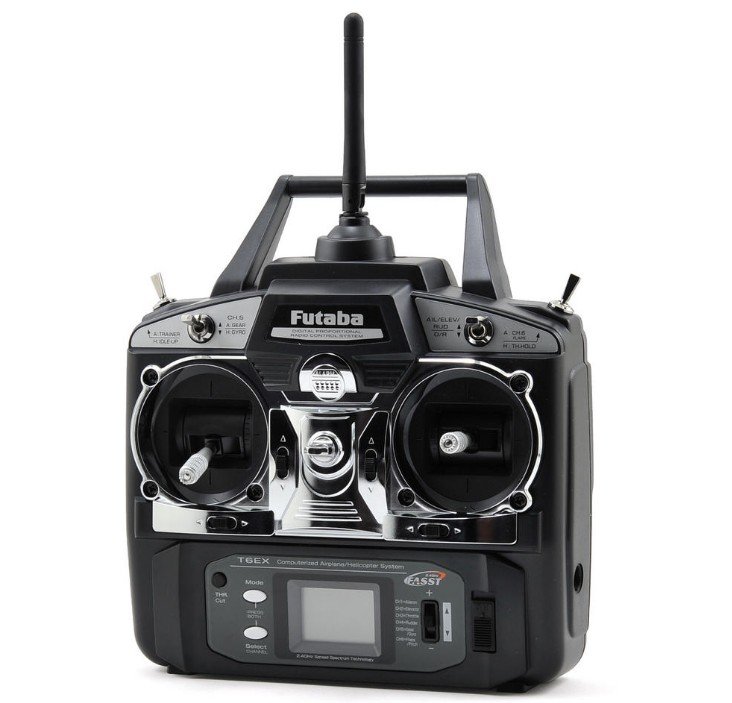

Futaba 6EX 6-Channel 2.4GHz FASST/ R617FS 富他巴  [6EX_C2]

Features :

Six model memory
\r\n Four character model naming
\r\n Multiple swash plate styles
\r\n Data reset
\r\n Trainer capability
\r\n EPA
\r\n Exponential and digital trims
\r\n Data input lever allows easy setting of end points and rates for all 6 channels.
\r\n Five point adjustment with two curves for both throttle and pitch curves.
\r\n Normal and Idle Up rate selection on both gyro mixing and revo mixing
\r\n Small speaker in face plate emits audio alarms
\r\n Throttle Hold switch for performing autorotation maneuvers and reducing idle \r\n for starting
\r\n The transmitter for Helicopter is divided into Mode 1 & Mode 2. The difference \r\n between two Mode is the position of the Lift foce control & Forward/Backward \r\n control. For Mode 1 (Right throttle), the left rod is to control the lift force \r\n ; while the left rod is forward / backward control .

2.4GHzSS (spread spectrum) radio communication system
\r\n Frequency channel setting unnecessary: sifting the channels within the 2.4GHz \r\n band automatically, this system minimizes the interference from 2.4GHz system
\r\n Accepts no unwanted signals by using ID code
\r\n The function \"auto-detect\" is utilized to automatically determine which mode \r\n is active, HRS or PPM mode (R617FS)
\r\n Short and small antenna (PK-DSM2.4G)/diversity antemma (R617FS)
\r\n R617FS Receiver

2.4GHz SS
\r\n Dimension: 27.5X41.6X9.2mm
\r\n Weight: 9.8g

PK-FSM2.4G Module
\r\n RF module for transmitter with spread spectrum system
\r\n Communication Method: One-way poeration system
\r\n Mode: PPM, HRS (auto-detect)
\r\n Maximum Operating Range: 80m (optimum condition)
\r\n For Safety: F/S, B-F/S, ID (about 4billion ways of pair identifications)
\r\n Teansmission Antenna: 1/2 mono-pole
\r\n The charger is 230V (2 round pins plug)

Futaba (#6EX) - Futaba 6EX 6 Ch Channel 2.4GHz SS Radio \r\n Set FASST TX with R617FS Receiver RX - No Servos - T/R Set Transmitter and Receiver \r\n 6EX-2.4GHz
