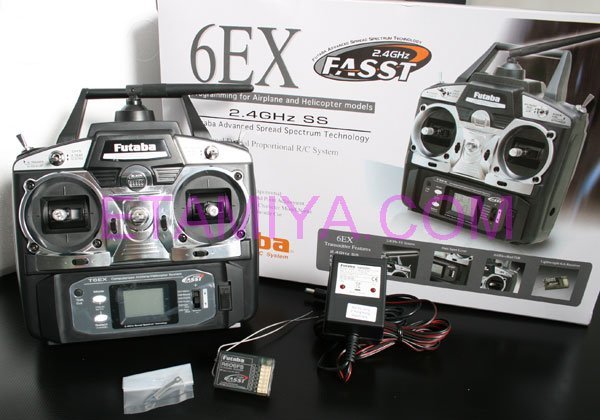

Futaba 6EX 6-Channel 2.4GHz FASST/ R606FS 富他巴  [6EX_C1]

Features :

Six model memory
Four character model naming
Multiple swash plate styles
Data reset
Trainer capability
EPA
Exponential and digital trims
Data input lever allows easy setting of end points and rates for all 6 channels.
Five point adjustment with two curves for both throttle and pitch curves.
Normal and Idle Up rate selection on both gyro mixing and revo mixing
Small speaker in face plate emits audio alarms
Throttle Hold switch for performing autorotation maneuvers and reducing idle for starting
The transmitter for Helicopter is divided into Mode 1 & Mode 2. The difference between two Mode is the position of the Lift foce control & Forward/Backward control. For Mode 1 (Right throttle), the left rod is to control the lift force ; while the left rod is forward / backward control .

2.4GHzSS (spread spectrum) radio communication system
Frequency channel setting unnecessary: sifting the channels within the 2.4GHz band automatically, this system minimizes the interference from 2.4GHz system
Accepts no unwanted signals by using ID code
The function "auto-detect" is utilized to automatically determine which mode is active, HRS or PPM mode (R606FS)
Short and small antenna (PK-DSM2.4G)/diversity antemma (R606FS)
R606FS Receiver

2.4GHz SS
Dimension: 27.5X41.6X9.2mm
Weight: 9.8g

PK-FSM2.4G Module
RF module for transmitter with spread spectrum system
Communication Method: One-way poeration system
Mode: PPM, HRS (auto-detect)
Maximum Operating Range: 80m (optimum condition)
For Safety: F/S, B-F/S, ID (about 4billion ways of pair identifications)
Teansmission Antenna: 1/2 mono-pole
The charger is 230V (2 round pins plug)
