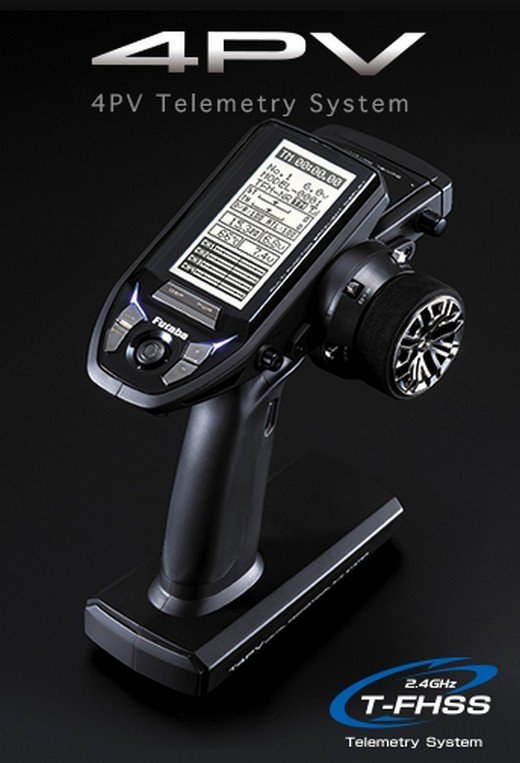

Futaba 4PV 2.4GHZ/T-FHSS Transmitter with Receiver R314SB x2 富他巴  [FP-4PV-24R2]

• T-FHSS and S-FHSS protocols
• Large backlit LCD screen
• Telemetry functions with logging capabilities and audible alerts
• Six digital trims
• 40-model memory
• 10-character model naming
• S.Bus/S.Bus2 servo programming
• Direct Model Select
• Model Copy/Model Clear
• Alarm tone adjustments
• Fail Safe
• Dial trim step select
• Data transfer/copy
• Firmware updatable via CIU-2 or CIU-3
• Compatible with 2S LiFe batteries, NiMHs, dry cells and other battery options.

Basic Functions:

• Backlit 39x74mm dot matrix LCD screen with contrast
• Auditable alarm
• Adjustable steering tension
• Angled antenna
• Adjustable steering position (angle/APA)
• Adjustable throttle position (forward/back)
• Telemetry logging with adjustable settings
• Telemetry data speech via earphone
• Servo link (programming S.Bus servos from the transmitter)
• One digital dial (programmable)
• One push switch (programmable)
• One push lock switch (programmable)
• Four push switches and one jog dial for navigation
• Automatic power off
• S.Bus servo setting
• Display switch (allows adjustments in the settings without turning on the RF signal)
• Two types of grip pads

Servo Adjustments:

• Digital steering trim
• Digital steering trim rate
• Steering reverse
• Steering dual rates
• Steering EPA (End Point Adjustments)
• Steering expo
• Steering sub trim
• Digital throttle trim rate
• Throttle reverse
• Throttle EPA (End Point Adjustments)
• Throttle ATL
• Mechanical ATL
• Throttle expo
• Throttle sub trim
• ABS
• Idle-up
• Throttle acceleration
• Throttle preset (hold)
• Throttle servo speed

4PV Features:

• T-FHSS and S-FHSS protocols
• Large backlit LCD screen
• Telemetry functions with logging capabilities and audible alerts
• Six digital trims
• 40-model memory
• 10-character model naming
• S.Bus/S.Bus2 servo programming
• Direct Model Select
• Model Copy/Model Clear
• Alarm tone adjustments
• Fail Safe
• Dial trim step select
• Data transfer/copy
• Firmware updatable via CIU-2 or CIU-3
• Compatible with 2S LiFe batteries, NiMHs, dry cells and other battery options.
• Servo Adjustments:

Digital steering trim:

• Digital steering trim rate
• Steering reverse
• Steering dual rates
• Steering EPA (End Point Adjustments)
• Steering expo
• Steering sub trim
• Digital throttle trim rate
• Throttle reverse
• Throttle EPA (End Point Adjustments)
• Throttle ATL
• Mechanical ATL
• Throttle expo
• Throttle sub trim
• ABS
• Idle-up
• Throttle acceleration
• Throttle preset (hold)
• Throttle servo speed
• Mixing Functions:

Programmable mixing:

• 4WS mixing
• Brake mixing
• Gyro mixing
• Steering mixing
• Throttle mixing

Channels 3 & 4 Programmable Functions:

• CH3 servo reverse
• CH3 step
• CH3 EPA (End Point Adjustments)
• CH3 sub trim
• CH3 brake
• CH3 ABS
• CH4 servo reverse
• CH4 EPA (End Point Adjustments)
• CH4 sub trim
• CH4 brake
• CH4 ABS

Timer Functions:

• Up timer
• Down timer
• Lap timer
• Lap memory (up to 100 laps & total)

Transmitter Specifications:

• Type: 4-Channel S-FHSS/T-FHSS*
• Includes: 4-Channel R304SB Receiver
• Requires: (4) "AA" alkaline batteries

*R304SB Receiver Specifications:

• Type: 4-Channel T-FHSS
• Input Power: 4.8V-7.4V
• Dimensions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)
• Weight: 0.23 oz (6.6 g)
