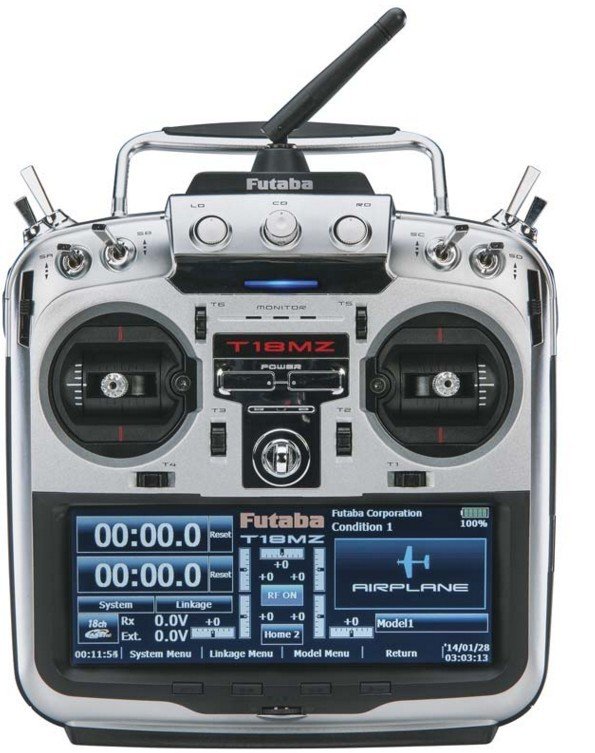

Futaba 18MZA 18-Channel 2.4G T-FHSS with R7008SB TX-Li Ion 18MZ Airplane Version Transmitter 富他巴  [FP-18MZA-WC]

Futaba 18MZ 18-channel 2.4GHz Computer Radio System
If the sheer number of things you can do with the 18MZ is impressive, the number of ways it offers you for doing them is nothing short of awe-inspiring. There's software for airplanes, helis and gliders, eight flight conditions and ten programmable mixes for each as well as numerous factory-programmed mixes. Plus more features than you'll probably use in a lifetime of flying.

If that's true, the obvious question is, "Why include them?" The answer is simple: it's because no two pilots set up a radio in exactly same way. The reason the 18MZ offers such unparalleled setup and performance versatility is so it can be set up in the most important way of all: yours.

Features:

• With the high-voltage R7008SB, your servo and channel choices are wide open.Use up to 8 channels with standard PWM outputs,up to 18 channels (16 proportional + 2 switched) through two S.Bus ports, and enjoy S.Bus setup simplicity and programmable performance.
• Built-in 0.3 megapixel digital camera makes taking aircraft ID pictures fast and simple.
• The 6" diagonal (152 mm) HVGA touch screen offers 640 x 240 definition and adjustable backlighting for outstanding visibility. SensorTouch technology lets you navigate and program with speed and ease.
• Two USB ports offer easy ways to connect to a keyboard or mouse, download and storage telemetry data or access setups stored on an external memory stick.
• This serial interface offers the same convenience as the stand-alone CIU-2. It's ideal for programming GY520 and CGY750 gyros, as well as S.Bus and S.Bus2 Servos.
• Stick angles adjust easily, to tailor the 18MZ's feel to your hand.
• The 18MZ comes with a 7.4V, 3500mAh LiPo transmitter battery. Provides power for up to 6 hours of uninterrupted flying.
• With Easy Link ID, you can link the transmitter and receiver with a tap on the touch screen.
• Generous spacing between shoulder switches leaves room for your fingers to rest.
• Removing one screw frees the entire switch block. Individual switches can be unscrewed for easy replacement or moved for a custom setup.
• Look inside the 18MZ, and you'll see the Futaba's commitment to dependability at every turn, from the use of surface mount technology to minimize the effects of vibration to Ball Grid Array to pack the most radio in the least space.
• Jacks for S.Bus servo programming, in-transmitter recharging and the earphone are located on the back panel for easy access and protection.
• The high-voltage R7008SB is compatible with all Futaba telemetry sensors, as well as S.Bus and S.Bus2 servos. Both can be plug directly into the R7008SB, without the interface boxes and decoders required by other systems.* Decoder required if non-S.Bus servos are used.

Overview:

• Channels: 16 proportional, 2 switched
• Compatible with:
  • FASSTest, FASST and S-FHSS protocols
  • Futaba HV (High-Voltage) receivers
  • All Futaba telemetry sensors
• Free online software upgrades
• 92MB internal memory
• Expandable model memory
• 32-character user naming
• 32-character model naming
• Airplane, helicopter, glider and motor glider programming
• 3 assignable rotary knobs
• 4 assignable slider switches (2/side)
• 5 assignable three-position switches
• 2 assignable two-position switches
• 1 assignable momentary two-position switch
• Dual, high-speed processors
• Earphone jack
• 0.3 megapixel camera
• Audio & Video players
• Built-in microphone
• Programming tools for S.Bus servos & gyros
• Easy Link ID touch screen
• Comfortable rubber grips on the sides and back
• Stick calibration, plus tension and angle adjustments
• Quad bearing gimbals
• Quick model select
• Servo monitor (neutral and moving tests)
• 2 up/down timers
• Integral timer system
• Model timer
• 4 vibration warning options (battery, condition, trim mix 1 & 2)
• Programmable trainer system
• Servo speed adjust
• Trim mix
• Programmable logic switches
• User menu
• Sub-trim (240 steps; channels 1-16)
• Servo reversing (all channels)
• Fail-Safe (all channels)
• Battery fail-safe (all linear channels)
• Endpoint Adjustment (all channels)
• Trim (adjustable step, rate & mode)
• Flight conditions
• AFR
• AFR curve mode (6)
• AFR curve point number (15)

Airplane programming features:

• 8 flight conditions
• 15 factory-programmed mixes
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Airbrake to elevon Mixing
• Rudder to ailevator mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Snap roll mixing
• Airbrake mixing
• V-Tail mixing
• Motor mixing
• Fuel mixture
• Multi-Engine mixing
• Gyro mixing

R7008SB Receiver Features:

• Bi-directional communication with a FASSTest Futaba transmitter using the S.Bus2 port
• Multiple optional telemetry sensors may be connected to the S.Bus2 port and the data displayed on the transmitter
• Includes both standard PWM output ports and S.Bus output ports
• External voltage port, 0-70V DC
• The External Voltage connector needed for this is:FUTM5551 CA-RVIN-700 EX VLT CBL

R7008SB Receiver Specs:

• Receiving Frequency: 2.4GHz FASSTest system
• Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
• Current drain: 75mA
• External voltage Port: 0 - 70V DC
• Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
• Weight: 0.38oz (10.9g)
• Antenna Length: 5-3/4"
