Futaba 12ZA 12-Channel 2.4GHz/ R6014FS 富他巴  [12ZA_c2]

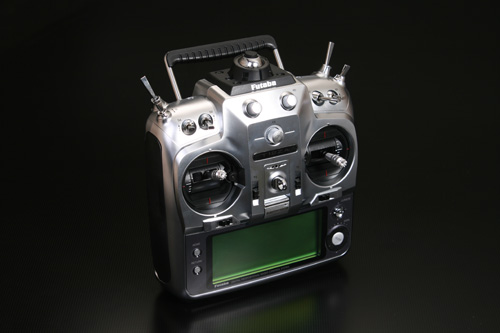

This is the FASST 2.4GHz Futaba 12Z Computer Radio with the R6014FS Synthesized 14-Channel Receiver.

The Futaba 12Z shares many features with the 14MZ such as Dual Internal Processors, Real-Time Response with 2048PCM, Fully Synthesized Receiver, Servo Grouping, Variable Dual Rates and Quad-Bearing Gimbals

FASST Features:

• Futaba's FASST (Futaba Advanced Spread Spectrum Technology) shifts every two milliseconds virtually eliminating signal conficts and interruptions unlike other 2.4GHz systems that only stay on one or two frequencies
• Dual antenna diversity enables FASST system to automatically and seamlessly select the best reception between the two antennas built into the receiver ensuring that the aircraft stays under constant control of transmitter regardless of altitude
• Pre-Vision Packet Screening technology scans incoming data for potential problems and applies sophisticated error correction techniques for solid impenetrable link with model
• Easy Link system features a unique ID code in the transmitter that links to the receiver insuring that receiver only follows commands from this transmitter-with over 134 million possible codes there is no chance for a conflict
• No hassle Fail Safe programmed through transmitter-no complicated set-up steps or binding plugs
• When performing a ground check, the Power Down function allows modeler to reduce power from up to 50+ paces away-like retracting the antenna on a conventional transmitter
• Purpose built custom IC chips for key functions; no off-the-shelf IC chips

  Radio Features:


• Dial-N-Key jog dial with joy stick button allows cursor movement in four directions for very user friendly programming PCM G3 2048 resolution is "backwards compatible" with 1024 PCM, and FM/PPM
• Supports 13 different wing types, 3 tail types and 3 motor types
• Supports eight flight conditions (seven plus the default)Stores memory for up to twenty-five models 245 model memory available with optional 32MB Compact Flash Card available separately Six factory-set Variable Dual Rate (VDR) curves can be assigned toany function in any flight condition configuration
• Variable Dual Rates (VDR) and Expo can be combined so they are automatically activated when a function is activated, no program mixing required
• Dual Internal Processors allow one processor to be devoted to flying functions while the other processor focuses on non-flight functions such as input and communications
• 7.4V 2200mAh Lithium Ion transmitter battery for long operating times R6014FS Receiver
• Retains G3 2048 resolution and Futaba Real Time Response from the 72MHz version.
• Simple one-touch binding - no plugs to mess with or lose A full range system for all aircraft from giant scale to Park Flyer applications-no need to buy separate receiver for specific aircraft Dual Antenna Diversity allows 2.4GHz FASST Futaba transmitter to select the best reception between the two receiver antennas with no signal loss
• Rubber grommets installed where antennas exit to eliminate stress and fraying of the two antenna wires
• Servo Grouping; Multiple servos controlling a single function can be set up through the transmitter and then plugged into differently adjustable receiver channels (even non-consecutively) without needing a separate servo synchronizer for mixing.
• Quad-Bearing Gimbals for smoothest motion and response, stick tension and detent are adjustable Seven color LED indicator

  Includes:


• Futaba 12Z Transmitter
• 7.4V 2200mAh Lithium Ion transmitter battery
• R6014FS Receiver
• Heavy-Duty Switch Harness
• Wall Mount Charger
• DSC Cable
• Does not include servos.
